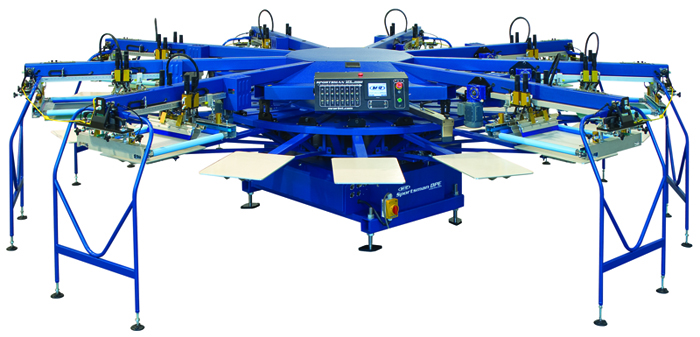

Sportsman DPE

Product Details

Sportsman DPE has the same simplicity of operation and performance-proven dependability as the Sportsman E, but with room to place flash units between print stations. Sportsman DPE’s eight printheads and 18 stations enable users to flash between each printhead and still print up to eight colors. Sportsman DPE has a maximum print stroke length of 72 cm (28.5") and a standard image area of 41 x 46 cm (16” x 18"). Sportsman DPE’s maximum image area (without flash cure units in place) is an impressive 76 x 72 cm (30” x 28.5”). All models feature servo-driven indexers, electric printheads, and multiple print-stroke capability.

The press is compatible with M&R’s Tri-Loc® & Double Tri-Loc® Rapid Registration Systems. Pneumatic clamps hold frames tight and allow rapid screen loading. Standard features like independent squeegee & floodbar speed adjustments, adjustable rear screen holders, independently-set angle and calibrated pressure adjustments, and independent print, reset, and print/flood speed controls on each printhead further simplify setup. Other standard features include a 14 cm (5.7”) color touch-screen display, onboard self-diagnostics, real-time production data, and an independent print-start/print-finish setting that automatically activates and stops printheads at the beginning and end of runs.

Also standard are a tool-free pallet locator system, quick release pallet locks, digital squeegee/floodbar speed display & enhanced front micro-registration adjustments.
