Diamondback

Product Details

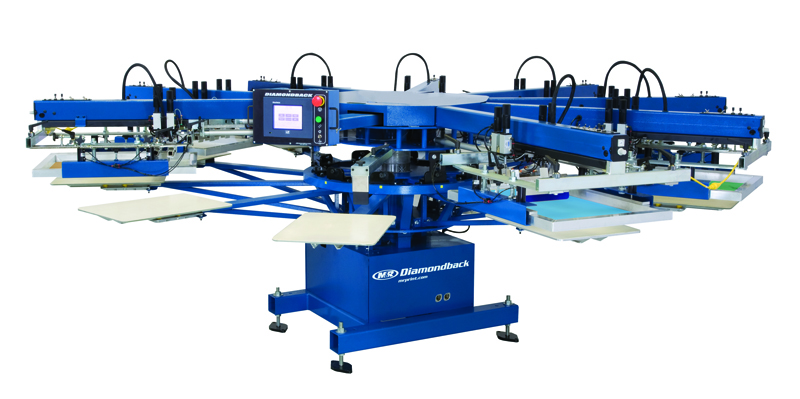

By relying on simplicity of design, strong standard-feature sets, highly-efficient manufacturing processes, and volume production, M&R’s Diamondback has broken the price barrier. The pneumatically-driven Diamondback is available in 6 and 8-color models, with a maximum image area of 41 x 46 cm (16” x 18”) and a maximum pallet size of 46 x 56 cm (18” x 22”). Diamondbacks can be ordered with an additional printhead over the unload station, turning the 6-color into a 7-color and the 8-color into a 9-color. The press can also be optionally configured to allow the additional printhead to be added in the field.

Diamondbacks are available in base and enhanced configurations. Both models feature pneumatically-driven print carriages, swiveling control panel arm with touch-screen display, micro-registration, calibrated squeegee pressure adjustment, standard M&R three-point pallet leveling bracket with quick release, rear stroke length adjustment, and new composite 41 x 56 cm (16” x 22”) pallets. M&R’s exclusive patented Revolver Print Program™ automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a printing position, giving printers a level of flexibility unavailable on other presses. Enhanced Diamondbacks add pneumatic frame locks, pneumatic squeegee/floodbar locks, and pneumatic squeegee pressure regulators. If you’ve been waiting for the right price on an entry-level automatic, your wait is over.
